OptiBond™ Technologies for Bonding, Load balancing and Failover

How do you provide 100% resilient, instant connectivity with built in VPN's between remote sites and head offices or even mobile buses?

5G Connectivity wherever you need it...

OptiBond Technologies for bonding, load balancing and failover with intelligent aggregation of multiple wired and wireless bearers to connect to 5G, 4G, 3G, DSL, WiFi, satellite etc. Whether at your office, at a temporary or remote location, or out and about in a vehicle you need fast reliable access to the internet in order to get your job done. i-MO delivers instant, secure connectivity where traditional connections are absent, have failed or simply don't deliver performance and reliability you can count on.

OptiBond 5G Bonding and Load Balancing

Bonds multiple connections:

i-MO allows you to combine or bond wired and wireless services as you need them. i-MO can bond up to three 4G / 5G connections (with support for up to six mobile data networks) plus as many as four broadband landline connections for unrivalled speed and uptime. Configure any of up to 10 Ethernet ports as WAN ports in order to add other bearers e.g. satellite.

Bonds intelligently:

The i-MO bonding algorithm automatically distributes traffic across available connections and manages these to achieve optimal performance, equalisation of data consumption, etc. i-MO units can be populated with up to six mobile data network SIMS with dynamic selection of the three best available 4G / 5G connections. Also offered is the facility for automatic failover between primary (e.g. DSL) and secondary (e.g. wireless) connections.

Bonds as you like it:

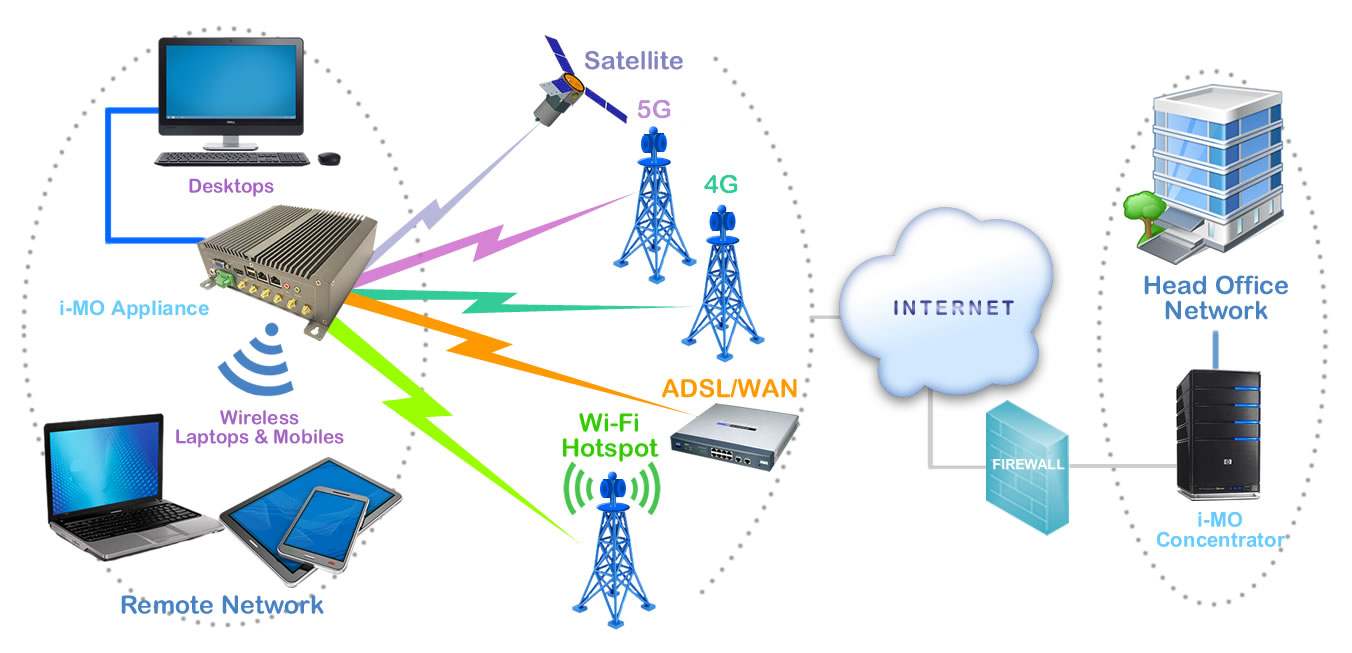

i-MO uses an end-to-end tunnelling protocol to aggregate bandwidth. Assembling and managing data across multiple bearers requires a suitable Appliance at either end of the link. With i-MO you have the option of using our proven vendor delivered Managed Service (no equipment required other than at the site where connectivity is required) or, alternatively, deploy our Virtual Concentrator in a maintained environment (e.g. your Data Centre) and deliver your own bonding services.

5G / 4G LTE compatibility built in:

Up to three latest-generation cellular modems can be embedded in the new i-MO Appliance. These support cellular mobile data networks which comply with 5G, 4G LTE, HSUPA, HSDPA, 3G, EDGE and GPRS standards.

OptiBond™ Key Features
  • “Power On” simplicity
  • Intelligent aggregation of multiple wired and wireless bearers for maximum performance & resilience. Connect to 5G, 4G, 3G, DSL, WiFi, satellite etc.
  • Automatic failover / failback between wired and wireless connections
  • Up to three 4G LTE / 5G modems can be embedded with the facility to select from up to six mobile data network SIMS
  • Secure VPN from appliance to Head Office
  • Secure WiFi or Ethernet access for users
  • Options include File Share, VoIP PABX & IP CCTV
  • i-MO units can be provided either as a Managed Service or, alternatively, deploy our Virtual Concentrator in a maintained environment (e.g. your Data Centre) and deliver your own bonding services
OptiBond 5G Bonding and Load Balancing




i-MO Applications

Machine 2 Machine

The i-MO appliance supports up to three high speed 4G or 5G cellular data connections. Our unique OptiBond technology combines these three independent connections into a single, super fast and resilient data circuit, which is ideal for streaming video data or for monitoring locations where live real-time feeds are required.

machine 2 machine

Branch / Small Office

The all-in-one i-MO appliance is a feature rich, easy to manage solution, that can provide all the data communications, telecom and data storage needs of a small or branch office. Up to four WAN or ADSL links can be aggregated by our unique OptiBond™ technology to create a single, hyper fast and resilient data circuit. The i-MO-SIP is a full-featured Voice over IP (VoIP) telephone system that can provide all the voice and telephone needs of a branch office.

branch-office

Temporary Locations

The i-MO appliance supports up to three high speed 4G or 5G cellular data connections. Our unique OptiBond technology combines these three independent connections into a single, super fast and resilient data circuit. The appliance can be fitted with up to six SIMs with the 3 best data networks being bonded using our OptiSim technology.

temp-locations


Marine

The unique OptiRoute technology can utilise a Satellite connection when at sea, but switch to 4G / 5G in port or near the coast to reduce cost and improve performance.

marine

Public WiFi

The optional 802.11 b/g/n WiFi access point can be used to provide public WiFi access at temporary locations or in public transport vehicles. The appliance can be fitted with up to six SIMs with the 3 best data networks being bonded using our OptiSim technology.

wifi

Broadcasting / Streaming Video

The unique OptiBond technology allows up to four WAN links and three cellular circuits to be aggregated into a resilient high speed data circuit for up-linking live or pre-recorded video broadcasts or stream live video for public events.

broadcasting


Point of Sale / Retail

i-MO can provide highly resilient data connectivity so that you are never offline and unable to complete transactions. At fixed locations you can configure an ADSL or WAN circuit as the primary link and in the event of a failure our OptiRoute technology can seamlessly switch over to a backup 4G / 5G connection.

Point of Sale

Mobile Services

The i-MO appliance supports up to three high speed 4G or 5G cellular data connections. Our unique OptiBond technology combines these three independent connections into a single, super fast and resilient data circuit.  The appliance can be fitted with up to six SIMs with the 3 best data networks being bonded using our OptiSim technology.

mobile vehicles

Application Technology Services
Provides an information transfer rate of at least 200 kbit/s. Many services advertised as 3G provide higher speed.
The i-MO-LTE module features data speeds up to 100Mbps downlink and 50Mbps uplink.
Using OptiSimTM technology, up to three 4G LTE modems can select from up to six mobile data network SIMS.
i-MO-SIP is a full-featured VoIP telephone system that can provide voice and telephone needs of a branch office.
Use OptiRouteTM resilience technology for failover from ADSL or WAN to a backup 4G (LTE) connection.
Can be used to provide public WiFi access. Supports up to three high speed 4G or 5G data connections.
File replication options provide data backup and protection for business-critical data.

OptiBond 5G Bonding and Load Balancing

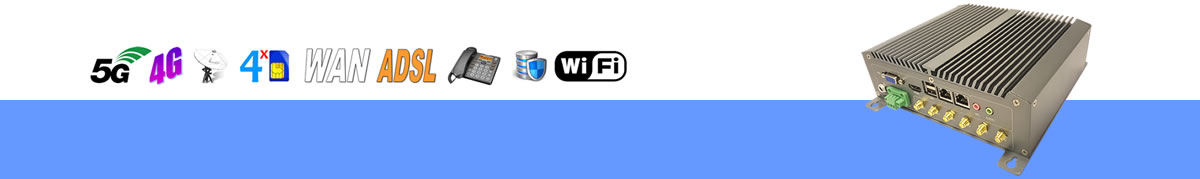

Features210225
Embedded Cellular modems
Option - up to 2 x 4G+
Option - up to 2 x 5G
Ethernet WAN/LAN *
2
2
Mobile data network SIMS **
4
4
802.11 b/g/n Wi-Fi WAN
Yes
No
802.11 Wi-Fi access point
Option
Option
Integrated GPS function
Option
No
Aerials 4G LTE / 5G with 5m cable
Option - up to 4
Option - up to 8
Please note:
* Ports can be separately configured as WAN or LAN
** Install up to six SIMS (i-MO 310) or 4 SIMs (i-MO 210/225). Supports slot rotation for data management



i-MO 310 Series Features

Software

i-MO Firmware with:

OptiBond™ Advanced Bandwidth Technology

Cellular SIM management

Intelligent Failover

Session Persistence

Device Management

Web Administrative Interface

Export / Import Configuration

Command Line Interface

WAN

DHCP Client

Static IP

WAN Link Health Check

LAN

Multiple LAN subnets supported

DHCP Server

DHCP Reservation

DNS Server

1

WLAN

802.11 b/g/n Access Point (i-MO 310 & 210)

VPN

Up to 5 concurrent VPN Tunnels (incoming and outgoing)

IPsec VPN

Site-to-Site mode

Ciphers: AES and 3DES

Hashes: MD5 and SHA1

Pre-shared Key

NAT-Traversal

Dead Peer Detection

Firewall

Stateful firewall with support for PPTP, FTP,SIP,H.323

Multiple zones: WAN, DMZ, LAN

Multi NAT

IP Forwarding

Port Forwarding

Advanced QoS

Bandwidth Reservation

Application Prioritization
