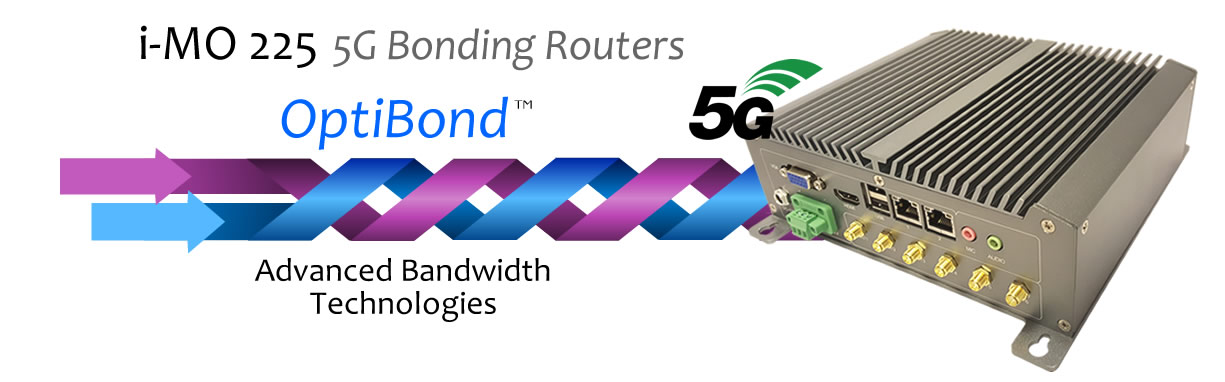

i-MO 225 Series 5G Bonded Router

5G Router Connectivity wherever you need it...

The i-MO 225 Series 5G Bonding & Load Balancing router is ideal for providing a branch office, home office, temporary location or mobile service with a high performance, resilient connection to the Internet or corporate LAN.

As standard the appliance is equipped with 2 x 5G compatible modems. The individual 5G links can be bonded together for extra bandwidth and resilience or can operate independently. When operated independently, different traffic types can be routed on separate LTE links (e.g. one link for data, the other for VOIP). The unit can be provisioned with up to four SIMS from diverse networks to allow for management of data allowances by means of SIM switching.. High performance MiMo type 5G aerial designs are supported (SMA type “main” and “diversity” connector for each modem / antenna).

The device offers two Ethernet ports which can be configured either as 2 x LAN or 1 x LAN and 1 x WAN. Allows for the setup of bonding of cellular and other links or to establish failover from eg xDSL to 5G or from 5G to satellite.

The administrative web interface easily allows the appliance to be configured for link-failover (e.g. from WAN to cellular) in addition to link aggregation to increase performance.

The appliance boasts a small form factor of just 185mm x 65mm x 195mm and supports flexible mounting options. Power can either be provided by the included external AC adapter (100–240V, 50-60Hz) or alternatively the unit can be powered from a regulated 12V automotive type supply.

Two external USB 2.0 ports provide the option for additional hardware upgrades eg the use of approved external dongle style 5G modems.

Bonds multiple connections:

The i-MO 225 Series 5G Bonded Router allows you to combine or bond wired and wireless services as you need them. The i-MO 225 Series bonding router can bond two 5G connections plus one WAN connection as standard for unrivalled speed and uptime. Add external USB devices to further enhance performance and resilience.

Bonds intelligently:

The OptiBond bonding algorithm automatically distributes traffic across available connections and manages these to achieve optimal performance, equalisation of data consumption. Also offered is the facility for automatic failover between primary (e.g. DSL) and secondary (e.g. wireless) connections.

Bonds as you like it:

OptiBond uses an end-to-end tunnelling protocol to aggregate bandwidth. Assembling and managing data across multiple bearers requires a suitable Appliance at either end of the link. With i-MO you have the option of using our proven vendor delivered Managed Service (no equipment required other than at the site where connectivity is required) or, alternatively, deploy our Virtual Concentrator in a maintained environment (e.g. your Data Centre) and deliver your own bonding services. All i-MO Appliances can also support simple load balancing across available connections where low cost and simplicity is a priority. Load balanced setups do not require a second endpoint appliance.

5G compatibility built in:

As standard two 5G cellular modems are embedded in the i-MO 225 Series Bonded Router. These support cellular mobile data networks which comply with 5G, 4G+ / LTE-A, 4G / LTE, HSUPA, HSDPA, 3G.



i-MO 225 Series 5G Bonded Router Features
i-MO 225 Series 5G Bonding Router
i-MO Firmware with Bandwidth Aggregation
Intelligent Failover
Session Persistence

WAN

Static IP
WAN Link Health Check

LAN

Multiple LAN subnets supported
DHCP Server
DHCP Reservation

VPN

IPSec
Site-to-Site mode
Ciphers: AES and 3DES
Hashes: MD5 and SHA1
Pre-shared Key
NAT-Traversal

Firewall

Stateful firewall
Multiple zones: WAN, DMZ, LAN
Multi NAT
IP Forwarding
Port Forwarding

Device Management

Web Administrative Interface
Export / Import Configuration
Command Line Interface

OptiBond 5G Bonding and Load Balancing




i-MO 225 Series 5G Bonded Router
Technical Specifications225 Series
Format
Mobile / Desktop
Dimensions (WxHxD)
185 x 65 x 195 mm
Weight
1.8 Kg
Status
Power LED
USB
2 x USB 2.0
Cellular Data Connectivity
2 x 5G Compatible Modems
Antenna Connectors
8 x SMA - 8 x Cellular/MiMo
LAN / WAN Interface
2 x Gigabit Ethernet (Max 1 x WAN)
Power Input
12VDC +/- 5%
Power Supply
External AC Adapter 100 - 240 VAC (47 - 63Hz)
Max Power Consumption
Estimated power consumption : 25W
Operating Temperature
-20°C to +60°C
Storage
Room Temperature
Humidity
10% to 90% (non-condensing)
CPU
Intel® Atom N2800
Max Throughput
950Mbs (> 150 Mbps with VPN)
Memory 2 Gb
Storage
32 Gb
WiFi WLAN Access Point
Not applicable - external access point recommended



i-MO 225 Series Features

Software

i-MO Firmware with:

OptiBond™ Advanced Bandwidth Technology

Intelligent Failover

Session Persistence

Device Management

Web Administrative Interface

Export / Import Configuration

Command Line Interface

WAN

Static IP

WAN Link Health Check

LAN

Multiple LAN subnets supported

DHCP Server

DHCP Reservation

DNS Server

1

WLAN

Not applicable - external access point recommended

VPN

Up to 5 concurrent VPN Tunnels (incoming and outgoing)

IPsec VPN

Site-to-Site mode

Ciphers: AES and 3DES

Hashes: MD5 and SHA1

Pre-shared Key

NAT-Traversal

Dead Peer Detection

Firewall

Stateful firewall with support for PPTP, FTP,SIP,H.323

Multiple zones: WAN, DMZ, LAN

Multi NAT

IP Forwarding

Port Forwarding

i-MO 225 Series 5G Bonding and Load Balancing Router
